airQrate

airqrate Unit DRAWINGS:

airQrate 19'':

Download “airQrate 19inch DXF”

airQrate 19inch.DXF – Downloaded 509 times – 962,33 kB

Download “airQrate 19inch PDF”

airQrate 19inch.pdf – Downloaded 678 times – 78,24 kB

airQrate Mobile with internal cylinder holder

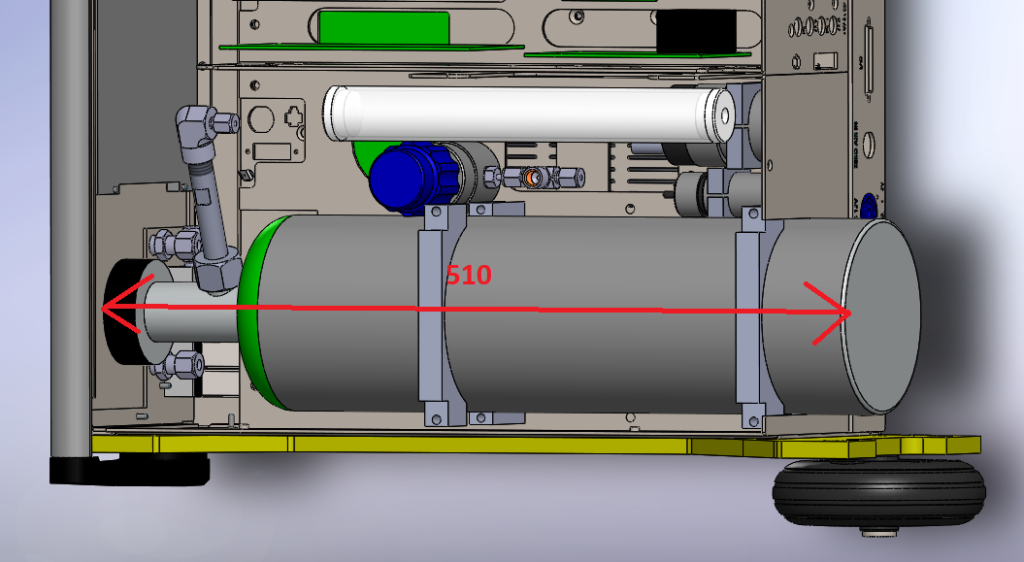

Maximum dimensions for the internal cylinder of the airQrate mobile version are diameter of 115mm  x 510mm length.

Download “Picture of 700-004000 with 2l cylinder”

P4049427 (Mittel).JPG – Downloaded 8 times – 207,95 kB

Connector for the internal cylinder.

We use as standard cylinder connector for the airQrate the connector DIN 477 Nr. 14. You need to check with your supplier of your gas cylinder what type of connector you need.

Pneumatic diagram of 700-004000 airQrate mobile preconfigured

Download “Pneumatics airQrate mobile preconfigured”

Kalibrator Verschlauchung Mobil 2l + Photometer.pdf – Downloaded 17 times – 42,17 kB
